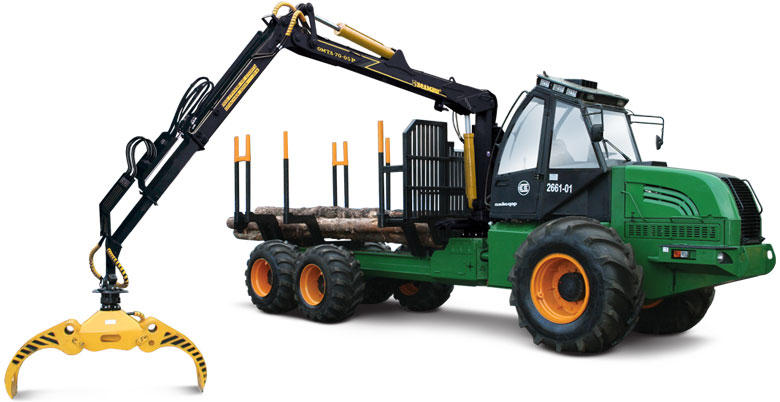

Forwarder "Amkodor-Velmash 2661-01"
The forwarder is intended for collecting, loading and transportation on the territory of cutting areas, on portages and logging roads of sorts and other round timber, as well as for carrying out loading and unloading operations, sorting and warehousing operations during sorting harvesting of wood.
The forwarder is equipped with:
- hydraulic manipulator OMTL (VELMASH-s),
- balancing bridge with lockable differential company NAF (Germany),
- hydraulic pump and hydraulic distributor of Sauer-Danfoss (Denmark).
The main qualitative indicators of the forwarder:
- hydraulic transmission with electric control,
- Hydro-volume steering,
- comfortable, with a high degree of glazing cabin,
- ease of maintenance
The forwarder "Amkodor-Velmash" 2661-01 collects the sorts processed by the Harvester, loads them on its trolley and takes them to the place of storage, where it can sort, or to the logging roads , from where the timber will be transported further . The forwarder takes thirteen to Seventeen cubic meters of wood at a time. It develops a speed of up to thirty-three kilometers per hour, it can transport timber tens of kilometers from the logging site. For example, with the last flight, it can deliver all its cargo to the consumer's warehouse.
The performance of the forwarder at a skidding distance of 300 meters is 20 m3/h, the consumption of diesel fuel is 0.5-0.6 L/M3. the hydro-mechanical gearbox allows the amkodor 2661-01 forwarder non-stop, without overheating the box, to drive under its own power through the forest a distance of up to 30 kilometers. Therefore, the consumer dispenses with low-floor trailers for transporting equipment.
Ground clearance of 600 mm. Under the bottom of the machine provides high throughput forwarder. The wheel Formula 6 * 6 and the lockable differential of the rear axle significantly increase the traction and cross-country performance of the car in poor road conditions, on soft and heterogeneous soils, especially if the adhesion to the ground of the wheels of one bridge is different. Tests have shown that the forwarder works effectively both on hard ground and on swampy terrain.
This offer is not a public offer.
Complete sets and prices agree with the sales department of LLC MC "Russian truck".
Wheel Formula: 6x6
Engine power: 148
Gearbox model: hydro-mechanical 4/2
Lifting capacity, T: 12
with manipulator OMTL-70-05R. 00. 000 AMK (boom 8.5 m);
load capacity at maximum reach 640 kg.);
the length of the cargo compartment is 4.8 m.;
the area of the cargo compartment is 4 cubic meters.;
engine D-260.1 (148 hp);
the length in the transport position is 9600 mm.;
width 2900 mm.;
height 3760 mm.;
track 2100 mm.;
base 5690 mm.;
turning radius 10.05 m.;
clearance 580 mm.;
operating weight 15600 kg.
